[Info] MAKERFACTORY EBB-ESP32

Postby rudi ;-) » Thu Dec 13, 2018 7:55 pm

Hi Folks

just in time spotted in the wild:

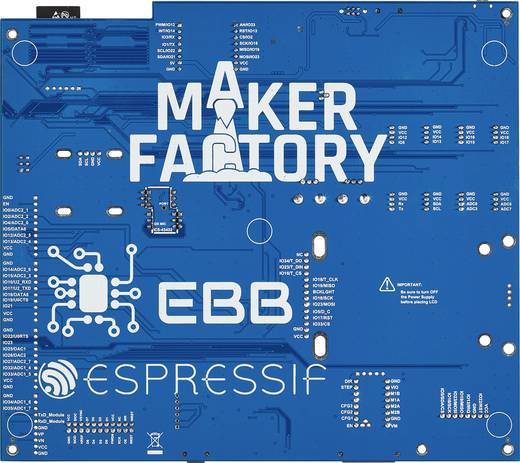

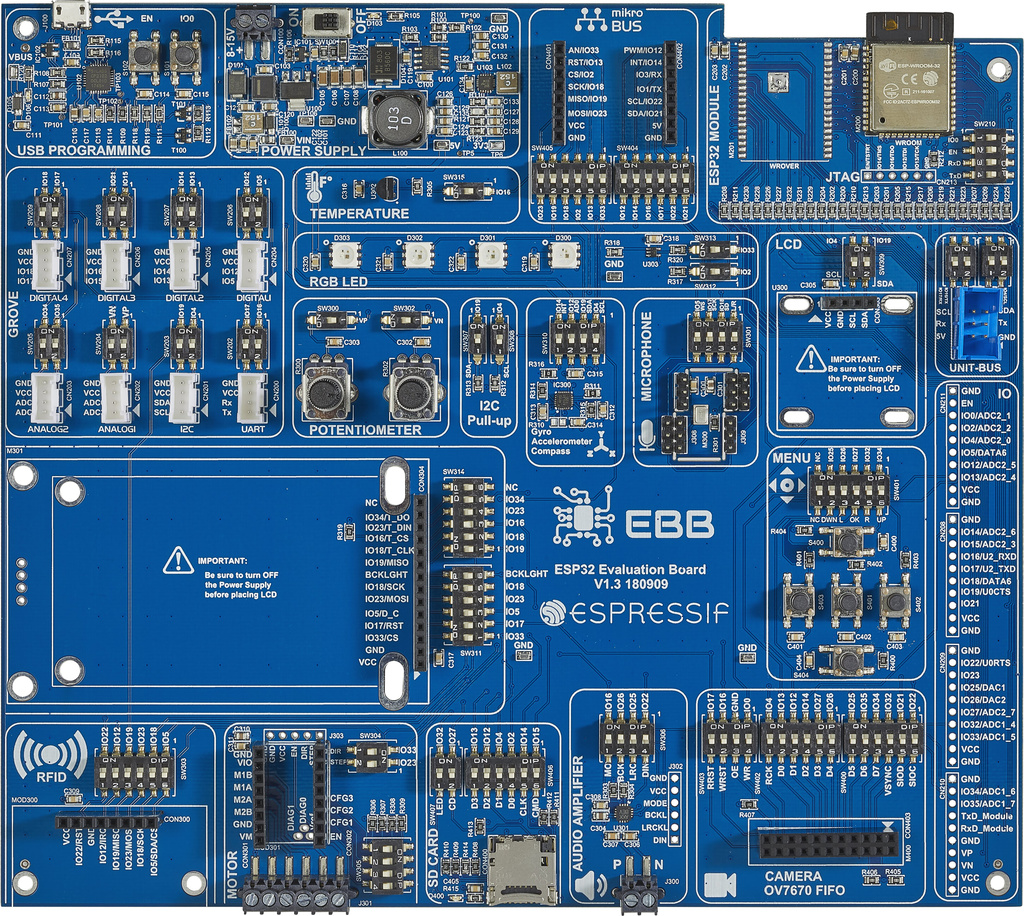

Schematics of the evaluation board if you need deep information about the structure of the board, you can download here

Peripheral components

Audio Amplifier
Camera
GPIO
Grove
I2C Pull-up
IMU
LCD
Menu
Microphone
mirkoBUS
Motor
Potentiometer
RFID
RGB LED
SD CARD
Temperature
TFT
Unit-Bus

You find
More Info and Quick Start here

hAppY mAkEr

best wishes
rudi ;-)
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

ESP_Sprite
Posts: 8921
Joined: Thu Nov 26, 2015 4:08 am

Re: [Info] MAKERFACTORY EBB-ESP32

Postby ESP_Sprite » Sat Dec 15, 2018 3:54 am

Holy crap, that must be the most well-featured ESP32 devboard I've seen up till now!

bobolink
Posts: 98
Joined: Mon Feb 26, 2018 4:17 pm

Re: [Info] MAKERFACTORY EBB-ESP32

Postby bobolink » Sat Dec 15, 2018 12:47 pm

With all that area, would be a dream to route the board!
